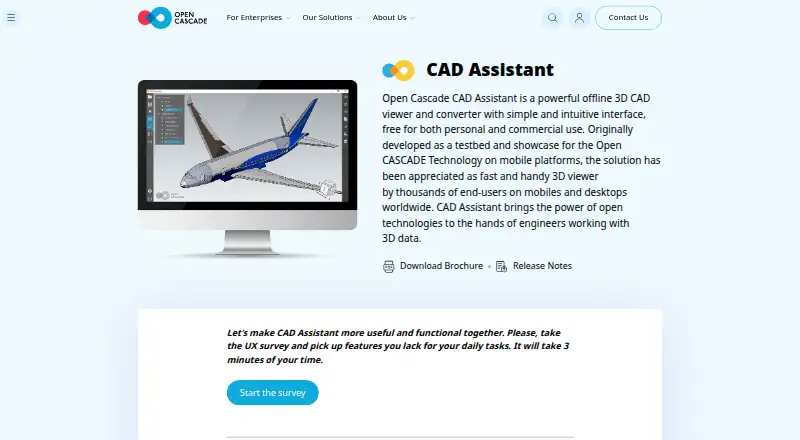

CAD Assistant

CAD Assistant is a free, offline viewer and converter for people who handle CAD assemblies and mesh files across desktop and mobile devices. It suits engineers, designers, reviewers and teams that need local inspection rather than a full authoring system. Its broad format coverage and detailed inspection tools are compelling, but conversion limits on some imports and hardware constraints narrow its role.

Overview

CAD Assistant brings model viewing, assembly inspection and selected conversion work into one application for personal and commercial use. It reads a mixed set of CAD and mesh formats, including STEP, IFC, IGES, BREP, glTF, JT, PLY, STL, OBJ, 3DM, DXF, SAT and Parasolid XT. That makes it useful when files arrive from several design systems instead of a single standardized pipeline.

Processing happens locally and does not require a server connection, which suits confidential designs and travel or field work without reliable connectivity. The current listed release is version 1.6.0, dated 2021-10-05. The application is supplied as is, without warranty; support is directed through forums and contact channels for questions, suggestions and bug reports.

Key features

Assembly and geometry inspection

An assembly tree lets users navigate structure and show or hide individual components. Product and geometric properties such as area, volume and centroid provide concrete checks on a model without opening a separate inspection utility. This is a strong fit for design reviews, supplier-file checking and technical communication, but it is inspection rather than CAD authoring.

Mesh analysis

PLY data can be shown in wireframe, shaded or shrink modes. Color or scalar quantities can be mapped to mesh elements or nodes, giving analysts a way to visualize associated data instead of viewing only surface geometry. The specialized PLY treatment is valuable for mesh-focused work, while users working mainly in other mesh formats should not assume the same analysis controls.

Rendering and workflow integration

Desktop editions include a GPU-accelerated path-tracing renderer for photo-realistic screenshots. Operating-system file associations allow compatible applications to open relevant files in CAD Assistant, and saved model images can be attached through a mail client. These touches make it practical for review and sharing workflows, not just one-off viewing.

Conversion boundaries

Commercial Open Cascade components can import models whose export or conversion is disallowed. The maker says models retain complete structure and are not subject to model-size limits, but that export restriction means CAD Assistant cannot be treated as a universal converter. Check the source and intended output before making it part of a production pipeline.

Pricing

PlanPriceWhat it includesCAD AssistantfreeFree for personal and commercial use; imports using commercial components restrict model export and conversion.There are no seat charges, usage quotas or renewal terms attached to the free plan. Its trade-off is functional: some imported models cannot leave the application in converted or exported form. That makes it an excellent zero-cost viewer and a conditional converter, not a replacement for paid interoperability software when dependable export is essential.

Platforms

CAD Assistant runs on Windows, macOS, Linux, iOS and Android. The desktop builds add path-traced rendering, while mobile use extends inspection to phones and tablets. Large files can take time to open, low-range GPUs may be slow, and scenes containing several million triangles may be terminated by the operating system. Files below 50 MB are generally safe on most devices, so mobile and modest hardware users should keep model complexity in mind.

Who it's for

Choose CAD Assistant for free, local review of mixed CAD and mesh files, especially when assembly structure, visibility control, basic geometric properties or PLY visualization matter. It is also a sensible option for organizations that cannot send models to a remote service. Look elsewhere when your workflow depends on exporting every imported model, routinely handles very heavy scenes, or needs a supported authoring environment rather than a viewer.

Pros and cons

Pro: Broad CAD and mesh format coverage helps teams inspect files from varied sources.

Pro: Local, offline processing keeps models on the device and works without a server connection.

Pro: Assembly trees, component visibility and area, volume and centroid properties support meaningful technical review.

Pro: Desktop path tracing produces photo-realistic screenshots, and file-association and mail workflows simplify sharing.

Con: Commercial-component imports cannot be exported or converted, blocking some otherwise expected conversion jobs.

Con: Large scenes can be slow or forcibly terminated, particularly on low-range GPUs and mobile hardware.

Con: The listed release is dated 2021-10-05 and the software carries no warranty.

Alternatives

For a paid interoperability toolkit with a 60-day evaluation, full access and technical expert support across desktop, mobile, web and Linux environments, choose HOOPS Exchange. Choose CAD Exchanger when perpetual or subscription licensing and node-locked or floating options fit a commercial deployment.

If you need a conversion API with a free allowance, Convert3D offers 10 conversions per month at no charge, with a 5,000-conversion annual Starter plan at $899 a year. ODA File Converter is a free alternative from a non-profit CAD and BIM interoperability consortium. For non-commercial Windows viewing, Spin 3D provides a free version; 3D-Tool offers a time-unlimited free viewer that cannot export CAD files.

Choose Open Asset Import Library (Assimp) when you need a BSD-licensed library for integration, or 3D InterOp for a paid, trial-supported interoperability product.

See the 3D File Converter Software list for more options.

Verdict

CAD Assistant is the right choice for anyone wanting a capable, no-cost local viewer that can inspect assemblies and mesh data on nearly any major platform. Its main reason to choose it is the combination of broad format support, offline operation and useful structural inspection. Look elsewhere when guaranteed export or conversion of commercial-component imports, very large-scene reliability or a newer supported release is central to the job.
