Purpose

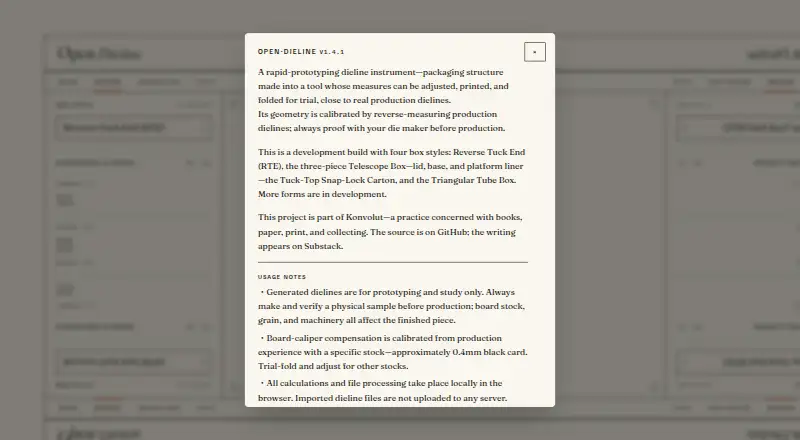

Open Dieline is a rapid-prototyping tool for adjustable, printable packaging dielines that can be folded for trial.Read 9 Oct 2026 · tool.konvolut.art

License

The project is licensed for noncommercial use under PolyForm Noncommercial 1.0.0; the maker asks commercial users to contact them.Read 9 Oct 2026 · tool.konvolut.art

Headquarters

Taipei, TaiwanRead 28 Sep 2026 · tool.konvolut.art

Maker

The site identifies Open Dieline as an instrument by Konvolut, a practice concerned with books, paper, print, and collecting.Read 4 Oct 2026 · tool.konvolut.art

Box styles

The development build includes Reverse Tuck End, a three-piece Telescope Box, Tuck-Top Snap-Lock Carton, and Triangular Tube Box styles.Read 9 Oct 2026 · tool.konvolut.art

Commercial contact

The maker directs commercial-use inquiries and issue reports to [email protected].Read 4 Oct 2026 · tool.konvolut.art

Design modes

The tool provides Design, Imposition, and Fold modes.Read 9 Oct 2026 · tool.konvolut.art

Desktop use

Canvas dragging and calibration are designed for mouse input, and the maker recommends a desktop browser.Read 4 Oct 2026 · tool.konvolut.art

Device guidance

Canvas dragging and calibration are designed for mouse input, and a desktop browser is recommended.Read 9 Oct 2026 · tool.konvolut.art

Dieline overlay

Users can import a production SVG, calibrate its scale, and overlay it against the generated layer for reference.Read 9 Oct 2026 · tool.konvolut.art

Exports

The tool offers SVG and DXF downloads.Read 9 Oct 2026 · tool.konvolut.art

Geometry

Its geometry is calibrated by reverse-measuring production dielines.Read 9 Oct 2026 · tool.konvolut.art

Local processing

Calculations and file processing take place locally in the browser, and imported dieline files are not uploaded to a server.Read 9 Oct 2026 · tool.konvolut.art

Material calibration

Board-caliper compensation is calibrated using approximately 0.4 mm black card, and the maker advises trial-folding and adjusting for other stocks.Read 9 Oct 2026 · tool.konvolut.art

Overlay

Users can import a production SVG, calibrate its scale, and overlay it against the generated layer for reference.Read 4 Oct 2026 · tool.konvolut.art

Production guidance

Generated dielines are for prototyping and study, and the maker advises verifying a physical sample and proofing with a die maker before production.Read 9 Oct 2026 · tool.konvolut.art

Production limit

Generated dielines are for prototyping and study; the maker says to verify a physical sample and proof with a die maker before production.Read 4 Oct 2026 · tool.konvolut.art
