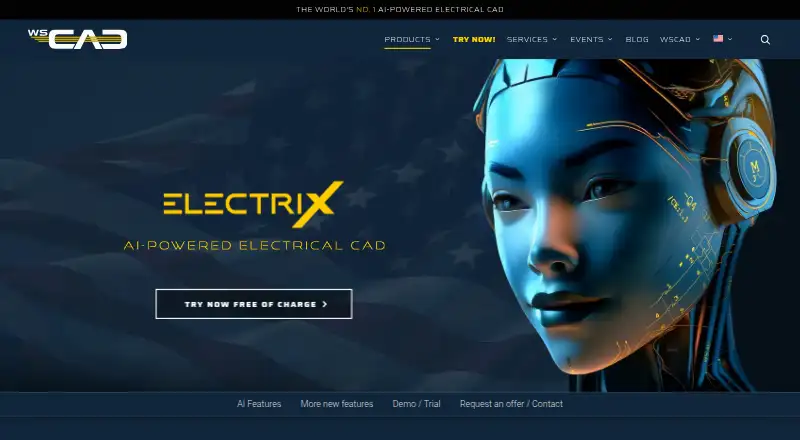

WSCAD ELECTRIX

Spec sheet

Product

ELECTRIX AI combines electrical engineering, cabinet design, fluid and process engineering, electrical installation, and building automation in one electrical CAD solution.Read 11 Oct 2026 · wscad.com

Trial

WSCAD offers a free, no-obligation 30-day trial with the Ultimate configuration, all six disciplines, add-ons, interfaces, and AI functions.Read 11 Oct 2026 · wscad.com

Integrations

Listed connections include PRO.FILE, OpenPDM, SAP PLM/ERP, Siemens Teamcenter, PTC Windchill, and Enovia/VPM.Read 11 Oct 2026 · wscad.com

Support

Subscription benefits listed by WSCAD include a technical support hotline and remote support via TeamViewer for complex problems.Read 11 Oct 2026 · wscad.com

Headquarters

Bergkirchen near Munich, GermanyRead 28 Sep 2026 · wscad.com

AI data handling

WSCAD states that AI Copilot text inputs are end-to-end encrypted, chat history is deleted after each session, and project content is not stored or transmitted to third parties.Read 11 Oct 2026 · wscad.com

AI design

The product can generate control cabinet layouts from circuit diagrams and assist with routine engineering tasks through AI Copilot.Read 11 Oct 2026 · wscad.com

Commercial pricing

WSCAD offers subscription and perpetual licenses and directs prospective customers to request an offer rather than showing a price on these pages.Read 11 Oct 2026 · wscad.com

Data compatibility

WSCAD lists compatibility with prior WSCAD projects, DXF/DWG, PDF, and cabinet layout data from other electrical CAD systems.Read 11 Oct 2026 · wscad.com

Documentation

It generates project documentation including circuit diagrams, material lists, terminal diagrams, test reports, and cabinet documentation.Read 11 Oct 2026 · wscad.com

Engineering disciplines

The product covers six disciplines: electrical engineering, cabinet engineering, piping and instrumentation, fluid engineering, electrical installation, and building automation.Read 11 Oct 2026 · wscad.com

Manufacturing interfaces

WSCAD lists interfaces to Siemens TIA Tools, Phoenix Contact, Weidmüller, WAGO, SolidWorks, Komax, nVent HOFFMAN, and Rittal/Kiesling.Read 11 Oct 2026 · wscad.com

Operating system

The listed standalone system requirement for ELECTRIX AI is Windows 11 64-bit; server operation lists Windows Server 2019 minimum.Read 11 Oct 2026 · wscad.com

Parts library

WSCAD says its wscaduniverse.com repository provides over 2.2 million parts from more than 457 manufacturers.Read 11 Oct 2026 · wscad.com

Subscription term

The standard subscription period is one year and renews automatically unless canceled, with a three-month notice period.Read 11 Oct 2026 · wscad.com
