VaMPy

Spec sheet

Purpose

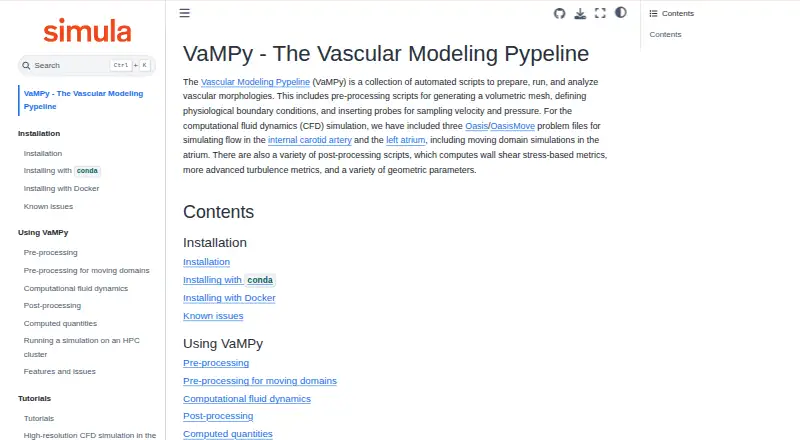

VaMPy is a collection of automated scripts to prepare, run, and analyze vascular morphologies.Read 8 Oct 2026 · kvslab.github.io

Free plan

YesRead 23 Sep 2026 · kvslab.github.io

3D visuals

YesRead 23 Sep 2026 · kvslab.github.io

Assessment tools

NoRead 23 Sep 2026 · kvslab.github.io

Authoring tools

NoRead 23 Sep 2026 · kvslab.github.io

CFD cases

The documentation includes Oasis and OasisMove problem files for flow simulations in the internal carotid artery and left atrium, including moving-domain atrium simulations.Read 8 Oct 2026 · kvslab.github.io

Computed hemodynamics

The hemodynamic indices include wall shear stress, time-averaged wall shear stress, oscillatory shear index, relative residence time, and endothelial cell activation potential.Read 8 Oct 2026 · kvslab.github.io

Delivery mode

desktopRead 23 Sep 2026 · kvslab.github.io

HPC support

The documentation describes a pipeline that can preprocess locally and run simulations and post-processing on an HPC cluster through SSH configuration.Read 8 Oct 2026 · kvslab.github.io

Input assumptions

The current implementation assumes input models use millimeters and says uncapped (open) models are preferable.Read 8 Oct 2026 · kvslab.github.io

Input scope

The documentation presents artery and left-atrium examples and says the software may also be used for other tubular or vascular shapes.Read 8 Oct 2026 · kvslab.github.io

Installation options

The project recommends conda for an isolated local environment and provides a Docker image that can run on operating systems supporting Docker.Read 8 Oct 2026 · kvslab.github.io

Lesson library

NoRead 23 Sep 2026 · kvslab.github.io

Meshing features

Preprocessing supports Laplace, Taubin, and Voronoi smoothing, flow extensions, boundary layers, regional refinement, and constant, diameter, or curvature meshing methods.Read 8 Oct 2026 · kvslab.github.io

Offline access

YesRead 23 Sep 2026 · kvslab.github.io

Pipeline

Its preprocessing scripts generate a volumetric mesh, define physiological boundary conditions, and insert probes for sampling velocity and pressure.Read 8 Oct 2026 · kvslab.github.io

Platform notes

For Windows, the documentation recommends Windows Subsystem for Linux or Docker; it also gives Linux and macOS conda installation instructions.Read 8 Oct 2026 · kvslab.github.io

Post-processing

Post-processing scripts compute wall-shear-stress metrics, turbulence metrics, and geometric parameters.Read 8 Oct 2026 · kvslab.github.io

Probe plots

The vampy-probe command visualizes velocity and pressure at probes and has an additional Matplotlib dependency.Read 8 Oct 2026 · kvslab.github.io

Simulation solvers

CFD simulations can be run with Oasis or OasisMove, and the documentation describes MPI commands for parallel runs.Read 8 Oct 2026 · kvslab.github.io

Visualization integration

The post-processing documentation says generated XDMF and HDF5 results can be visualized in ParaView.Read 8 Oct 2026 · kvslab.github.io
