sip-exporter
- 1Runs onLinux, self-hosted
- 2CostsFree plan
- 3MOS scoringYes
- 4Jitter trackingYes
- 5Packet-loss trackingYes
Overview
sip-exporter is a free, open-source Linux and self-hosted eBPF sensor for SIP and correlated RTP monitoring. It exposes Prometheus metrics at /metrics, including SIP traffic, active sessions, RFC 6076 performance, voice quality, RTP, RTCP, fraud, and diagnostic measures. RTP analysis covers jitter, packet loss, packet-delay variation, and E-model MOS; RTCP sender and receiver statistics include loss, jitter, and round-trip time linked by SSRC. Documented fraud indicators include registration scans, INVITE bursts, account takeover after a registration country change, and False Answer Supervision. A Grafana dashboard has 11 sections, with Prometheus alert examples and Alertmanager examples for Slack, PagerDuty, and email. Metrics are documented for Prometheus, VictoriaMetrics, Grafana Cloud, and compatible scrapers. Deployment uses a single container that must run privileged with host networking. Capture is limited to IPv4/UDP SIP and related RTP/RTCP, and the sensor must see signaling and media on the same call path.
Who it is for
sip-exporter suits Linux operators who can place a privileged sensor where both SIP signaling and RTP media are visible. It fits users already using Prometheus or Grafana-compatible monitoring.
What is good
- Open-source AGPL-3.0 licensing
- Reports jitter, packet loss, and MOS
- Includes Grafana dashboard and alert examples
- Documents Prometheus-compatible integrations
- Does not store packets or audio
What to know first
- SIP over TCP or TLS is unsupported
- IPv6 and fragmented UDP are unsupported
- Requires privileged container and host networking
- Needs signaling and media on the same path
Verdict
sip-exporter provides detailed SIP, RTP, RTCP, quality, and fraud metrics for compatible Linux traffic. Its value depends on meeting strict capture and network-placement requirements.
sip-exporter plans and pricing
All plansCompared on VoIP monitoring software
- Free plan
- Yesgithub.com
- MOS scoring
- Yesgithub.com
- Jitter tracking
- Yesgithub.com
- Packet-loss tracking
- Yesgithub.com
Facts
- Purpose
- sip-exporter is an open-source eBPF sensor that turns SIP signaling and correlated RTP traffic observed on a Linux host into Prometheus metrics and Grafana dashboards.github.com · 5 Oct 2026
- Capture method
- An eBPF socket filter selects IPv4 SIP packets over UDP for userspace processing; SIP over TCP or TLS is not captured.github.com · 5 Oct 2026
- SIP and RTP metrics
- The exporter reports SIP traffic and session metrics, RFC 6076 performance metrics, and RTP quality metrics including packet loss, jitter, and MOS.github.com · 5 Oct 2026
- RTCP support
- It reports RTCP receiver and sender statistics, including loss, jitter, and round-trip time, correlated by SSRC.github.com · 5 Oct 2026
- Fraud signals
- Documented fraud signals include registration scans, INVITE bursts, account takeover after a registration country change, and False Answer Supervision.github.com · 5 Oct 2026
- Grafana dashboard
- The repository includes a Grafana dashboard with 11 sections and documented Prometheus alert-rule examples.github.com · 5 Oct 2026
- Integrations
- The Prometheus-format metrics are documented as compatible with Prometheus, VictoriaMetrics, Grafana Cloud, and other Prometheus-compatible scrapers.github.com · 5 Oct 2026
- Deployment
- The project provides a single-container deployment and says the container must run privileged with host networking to access eBPF and the network interface.github.com · 5 Oct 2026
- Supported traffic
- Capture support is IPv4/UDP SIP and RTP/RTCP; SIP over TCP/TLS, IPv6 traffic, and fragmented UDP are listed as unsupported.github.com · 5 Oct 2026
- Network placement
- For full metrics, the sensor must run on a host that sees both SIP signaling and RTP media on the same call path.github.com · 5 Oct 2026
- Data handling
- The project says it does not store packets or audio; its RTP processing parses the fixed RTP header and does not inspect or persist audio.github.com · 5 Oct 2026
- Telemetry
- Anonymous usage telemetry is enabled by default and can be opted out of by setting SIP_EXPORTER_TELEMETRY to false.github.com · 5 Oct 2026
- License
- The project is licensed under AGPL-3.0 and says modified network-accessible versions must offer users the corresponding source under the license terms.github.com · 5 Oct 2026
- Support
- The project directs users to GitHub Issues for support, bug reports, and feature requests, and to its security policy for private vulnerability reports.github.com · 5 Oct 2026
- Capture
- It captures IPv4/UDP SIP and correlated RTP/RTCP; SIP over TCP or TLS is not captured.github.com · 5 Oct 2026
- Metrics
- It exposes SIP traffic, active-session, RFC 6076 performance, RFC 6035 voice-quality, RTP, RTCP, fraud, and diagnostic metrics at `/metrics`.github.com · 5 Oct 2026
- RTP quality
- RTP analysis includes jitter, packet loss, packet-delay variation, and E-model MOS for streams correlated with SIP dialogs.github.com · 5 Oct 2026
- Dashboard and alerts
- The repository includes a Grafana dashboard and documented Prometheus alert-rule examples, with Alertmanager examples for Slack, PagerDuty, and email.github.com · 5 Oct 2026
- Privacy
- The README says the exporter does not store packets or audio and parses only the fixed 12-byte RTP header, while RTP snapshots copied to userspace may include a small payload prefix.github.com · 5 Oct 2026
- Limits
- The sensor requires a host that sees IPv4/UDP SIP signaling and the correlated RTP/RTCP path; IPv6, fragmented UDP, SIP over TCP/TLS, and mirrored traffic for trustworthy QoE/direction are unsupported.github.com · 5 Oct 2026
Best sip-exporter alternatives
See all 19
Where it ranks on Specifiction
Is sip-exporter yours?
Claim it for free: prove the domain, then correct facts, plans and screenshots. An editor reviews every change.
Sources

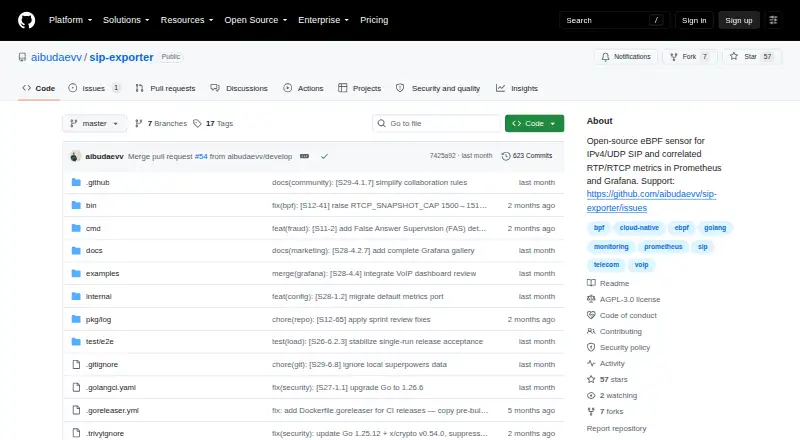

- github.com/aibudaevv/sip-exporter· checked 5 Oct 2026
